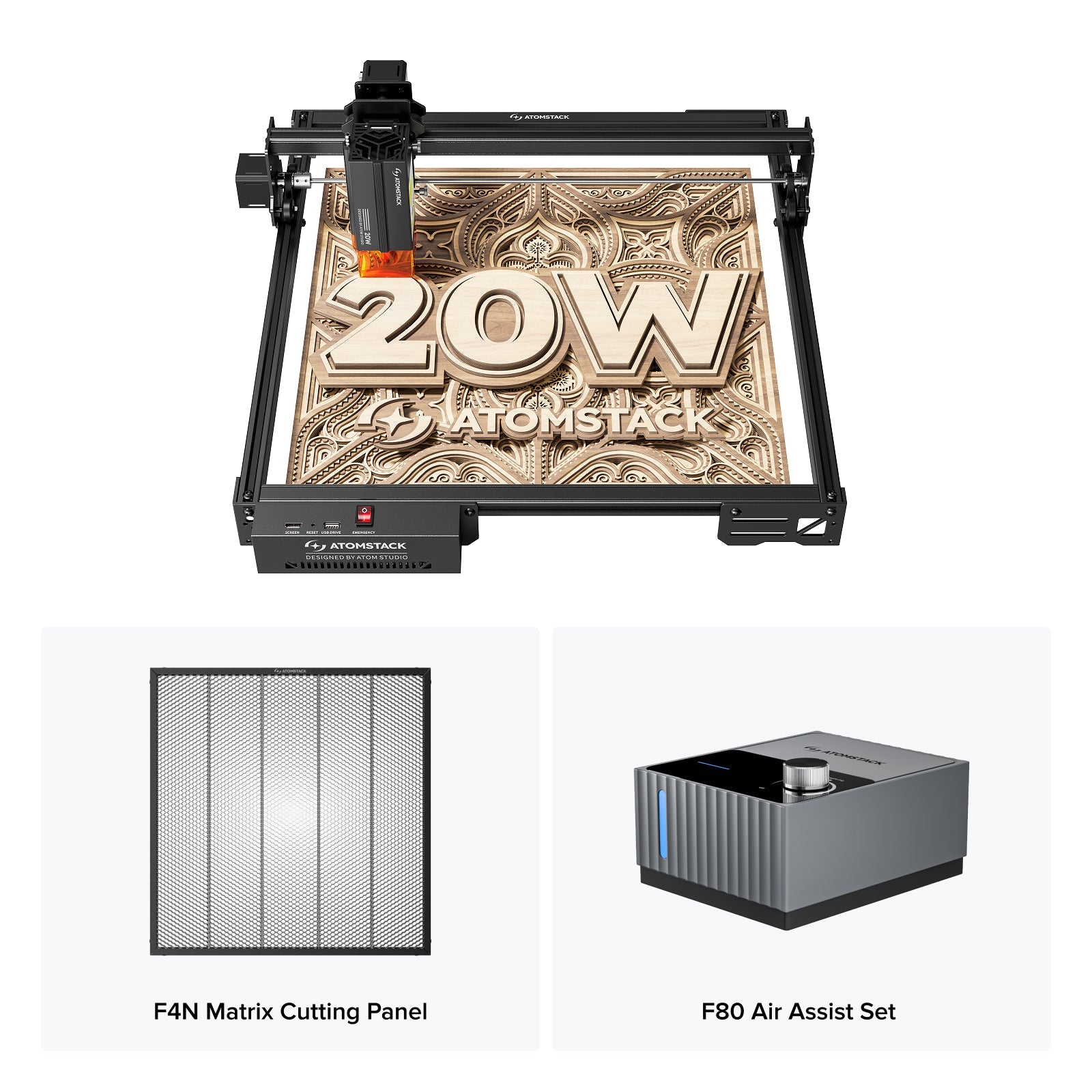

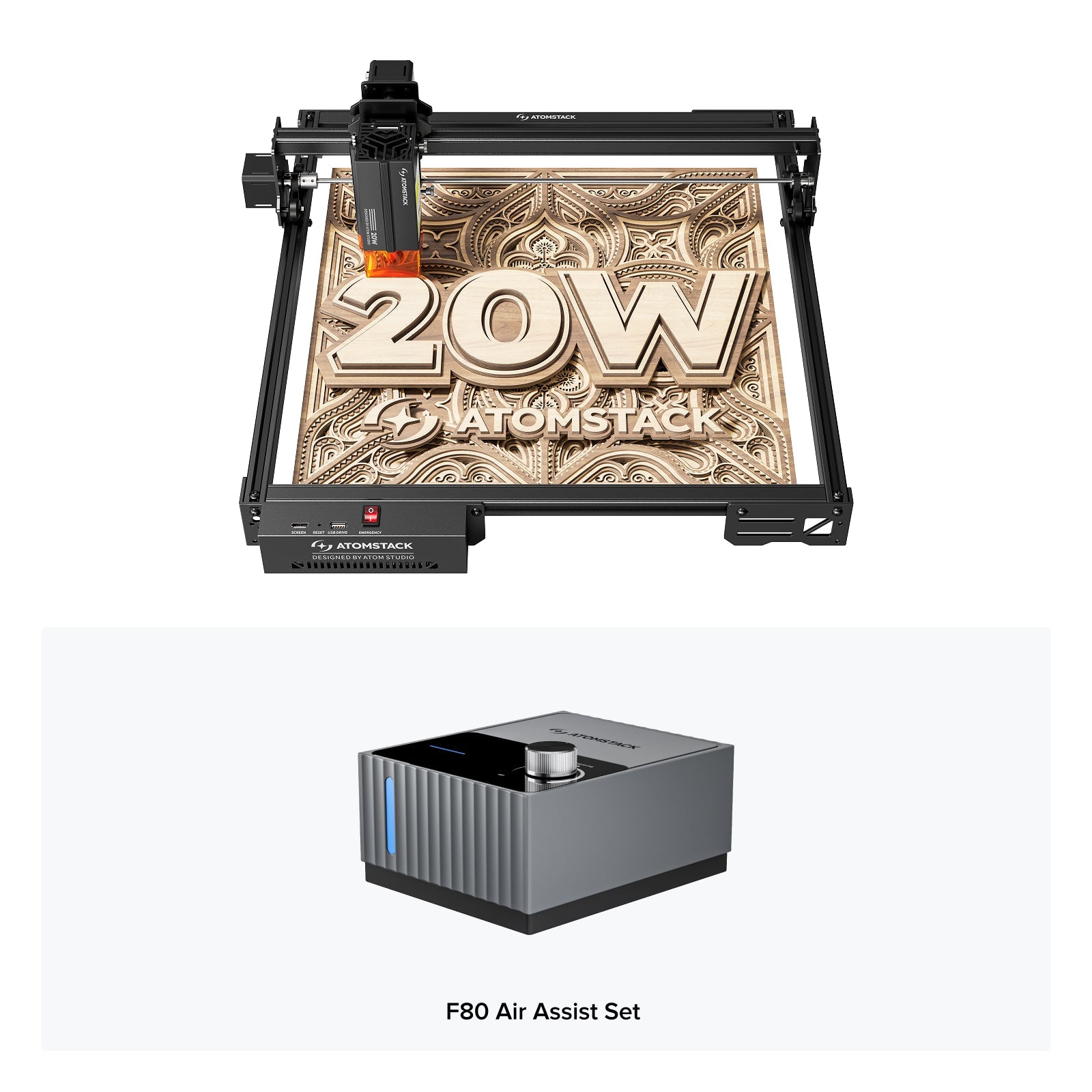

AtomStack A20 Pro V2 Laser Engraver

    €329,00€649,98

    €18,27/mo. for 18 months

    Shipping & Return Policy

    Free shipping within Germany. A flat shipping fee of €9.90 applies to all other European countries. Orders are dispatched from the nearest regional warehouse within 48 hours. Returns are accepted within 30 days of delivery in the original packaging.

    User Manual & Price Guarantee

    Manuals, firmware and LightBurn profiles are on the support page. Find the same machine cheaper elsewhere within 14 days of your order and we refund the difference.

    Compatibility Explore
    PayPal
    Plug
    Package

    From the Atomstack Community

    • Vintauri

      Vintauri

      It's a minimal investment to be able to allow you on-site engravings which is a good way to really bump up your sales at events
    • KellyBlogs

      KellyBlogs

      Whoa, that’s so beautiful. Look at that, guys — I can’t believe it. It’s gorgeous.
    • La Bizounerie

      La Bizounerie

      You can really tell the engraving came out superb — the lines are so crisp and well defined.

    The AtomStack A20 Pro V2 features a 20W diode laser with a fine 0.08 × 0.10 mm laser spot, delivering clean engraving and reliable cutting across a wide range of materials. With a 400 × 365 mm working area and speeds up to 400 mm/s, it also includes essential safety features like flame detection, tip-over alarm, and resume engraving, making it a solid and dependable choice for everyday creation.


    Specifications

    Product Model: A20 Pro V2
    Device Size: ‎7 x 10 x 7 inches

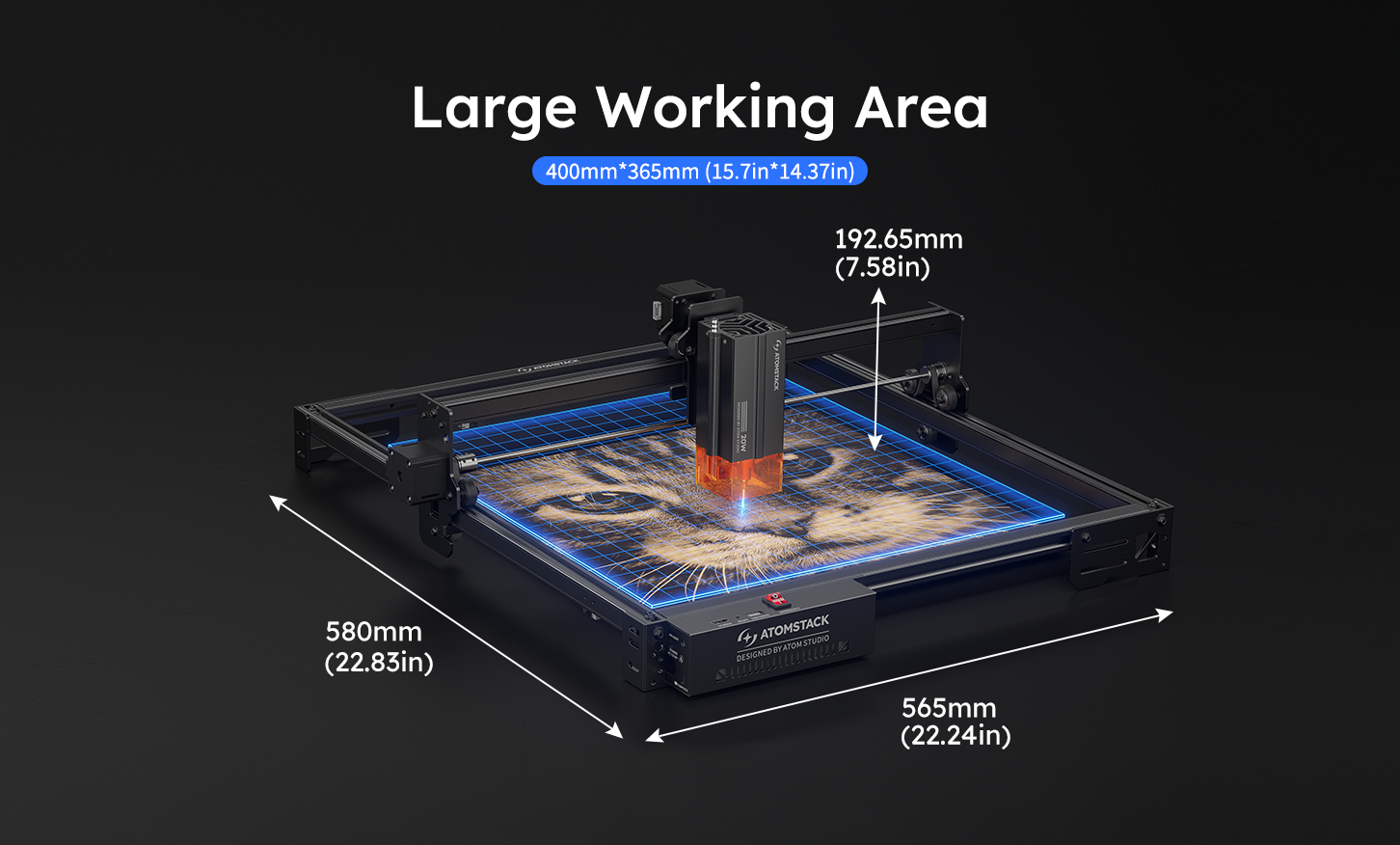

    Engraving Size: 400 * 365mm(15.75*15.4inches)
    Working Principle: Engraving / Cutting
    Engraving Materials: Wood, bamboo, cardboard, plastic, leather, PCB board, aluminum oxide, non-reflective electroplated and painted metal, 304 mirror stainless steel, dark glass, ceramics, cotton, slate
    Cutting Materials: Thin steel plate, cardboard, non-woven fabric, wood, black acrylic, more thin plastic sheets, sponge
    Input Power: 120W

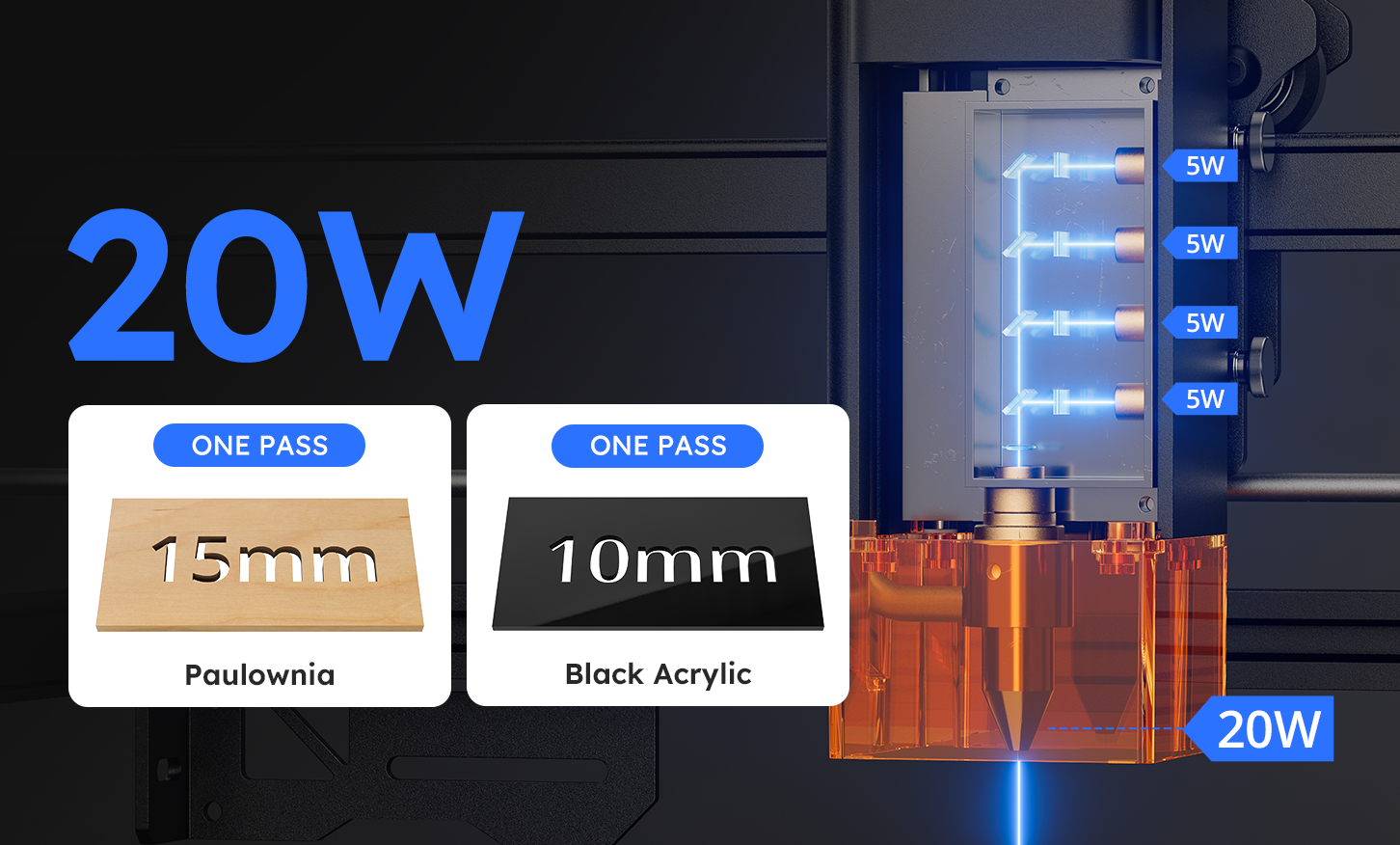

    Output Power: 20W

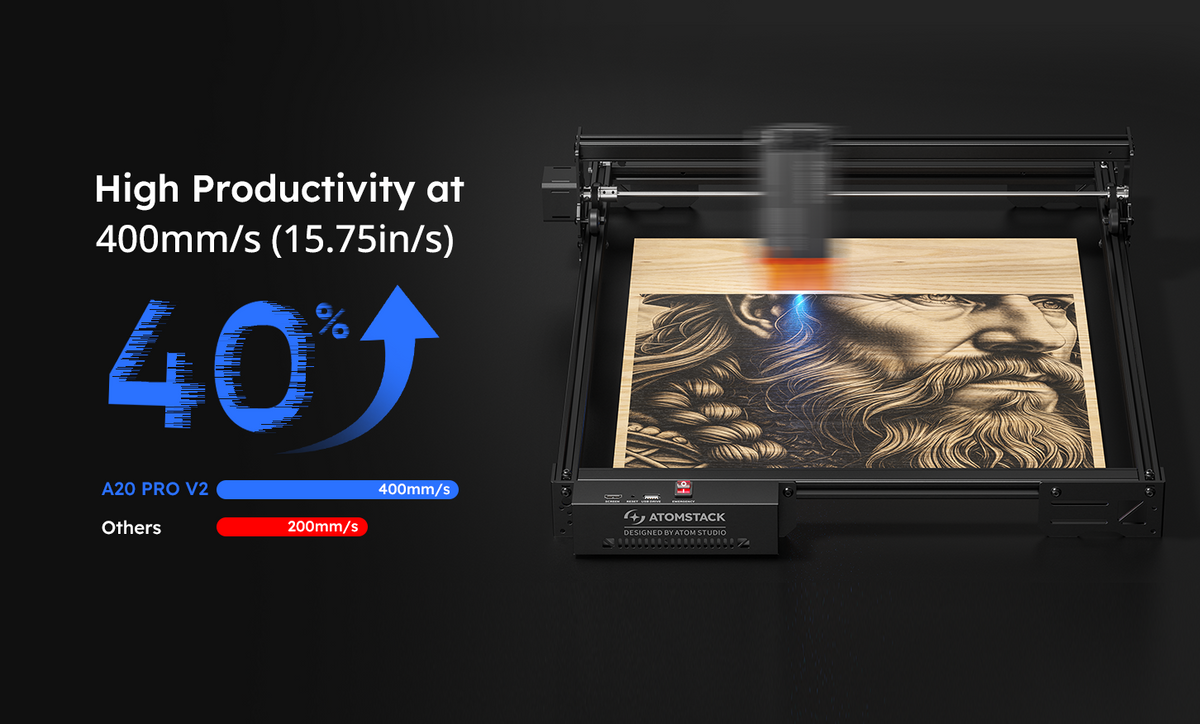

    Maximum Speed: 400 mm/s
    Laser Wavelength: 455±5nm
    Engraving Accuracy: 0.02mm

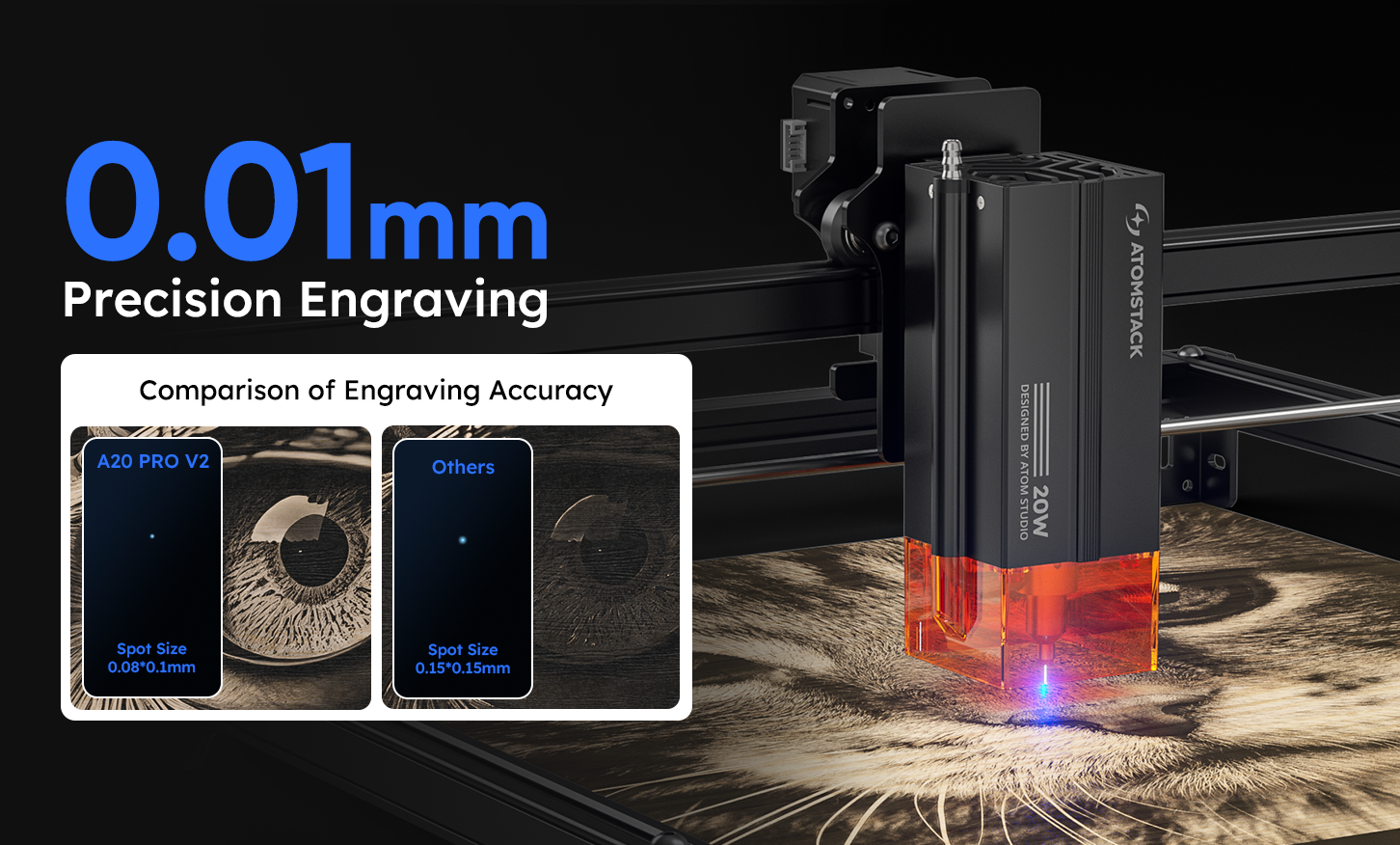

    Spot Size: 0.08*0.10mm

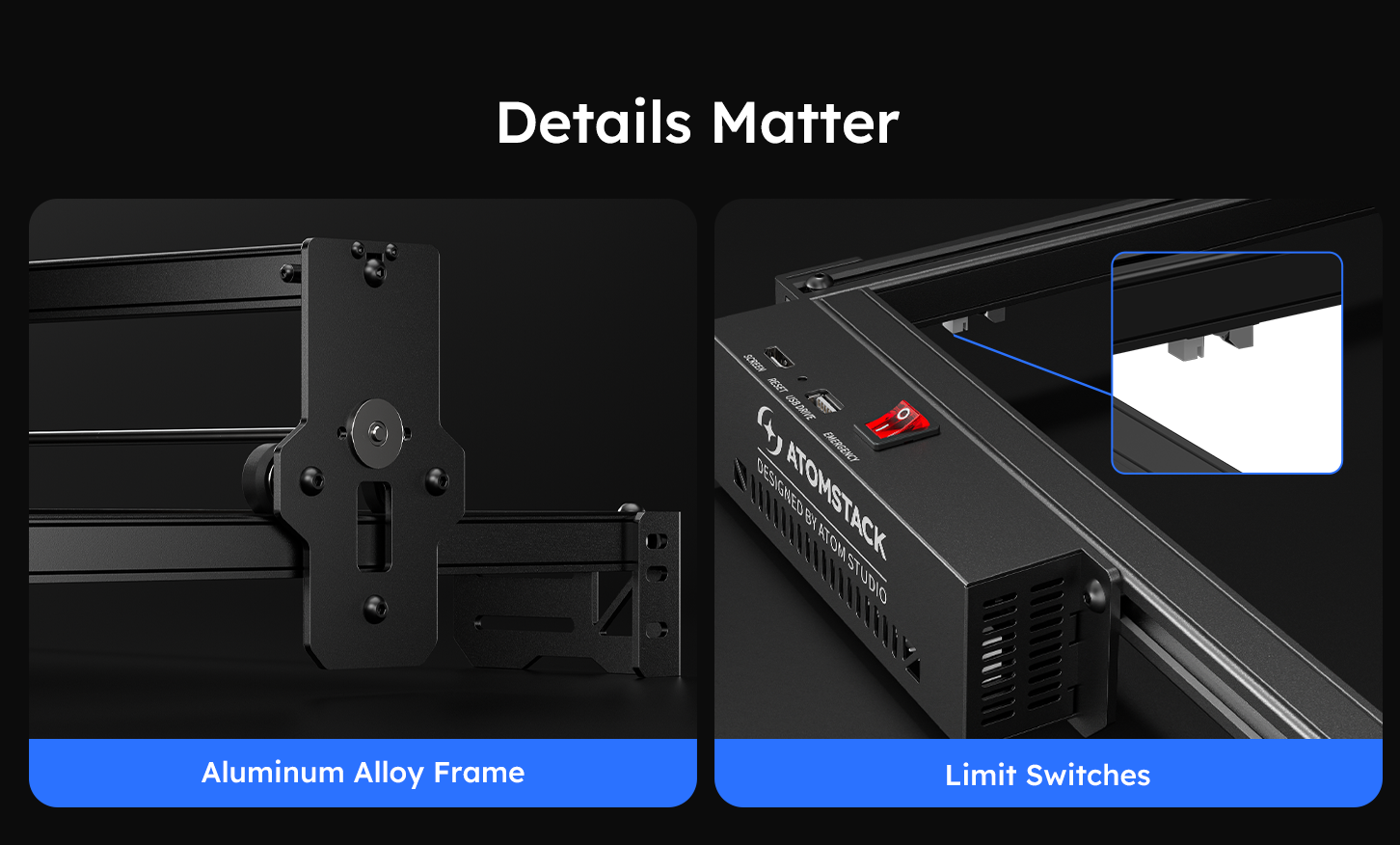

    Joint Structure: Guide Rails
    Connection Method: USB、Wi-Fi 2.4G
    Supported Devices & Operating Systems: Mobile: Android, iOS
    Computer: Windows, mac OS

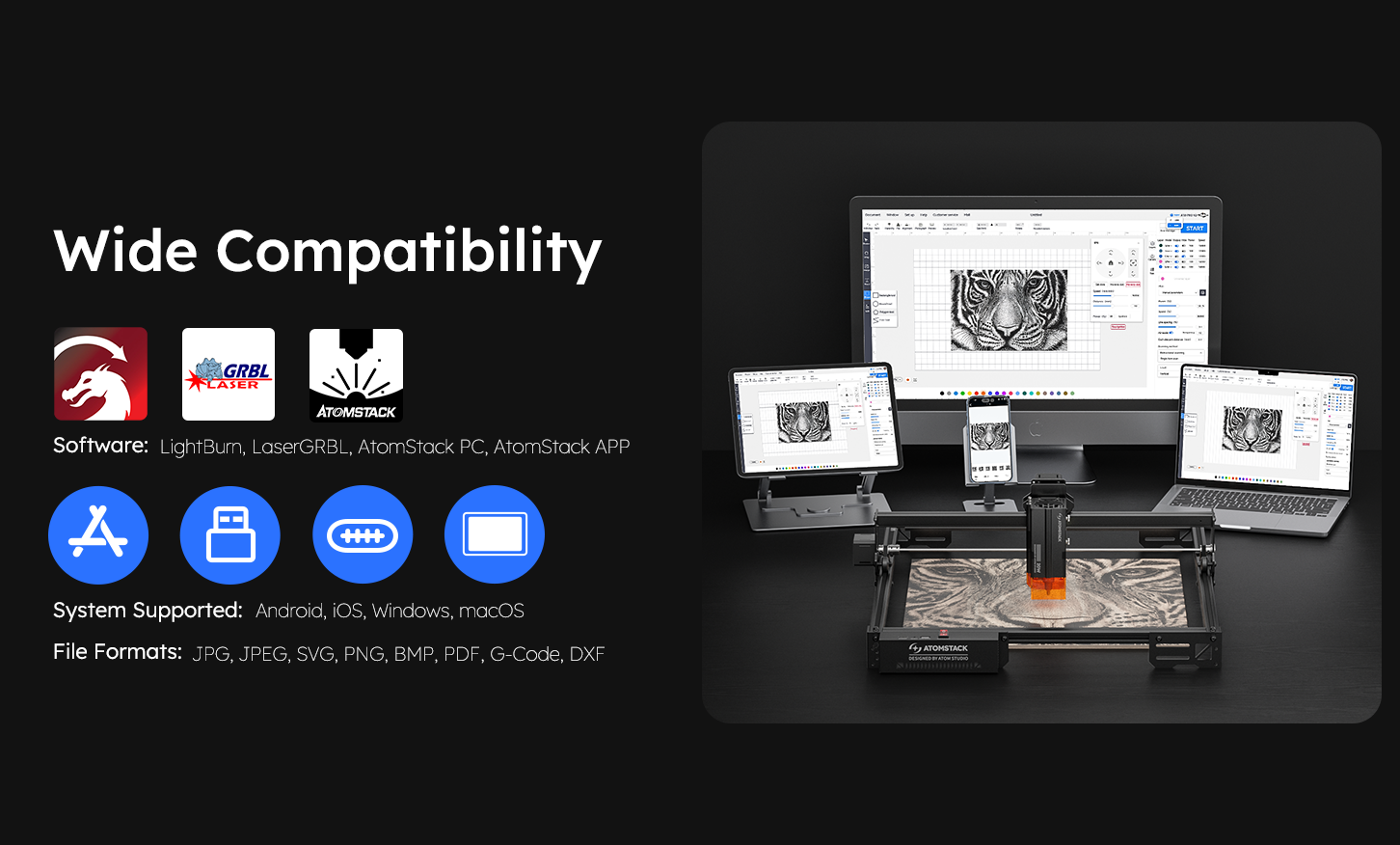

    Software: LightBurn、LaserGRBL、Atomstack PC、Atomstack APP
    Driver Update: AtomStack APP or USB drive
    Supported Formats: JPG, JPEG, SVG, PNG, BMP, PDF, G-Code, DXF
    Focus Adjustment Method: Manual focus

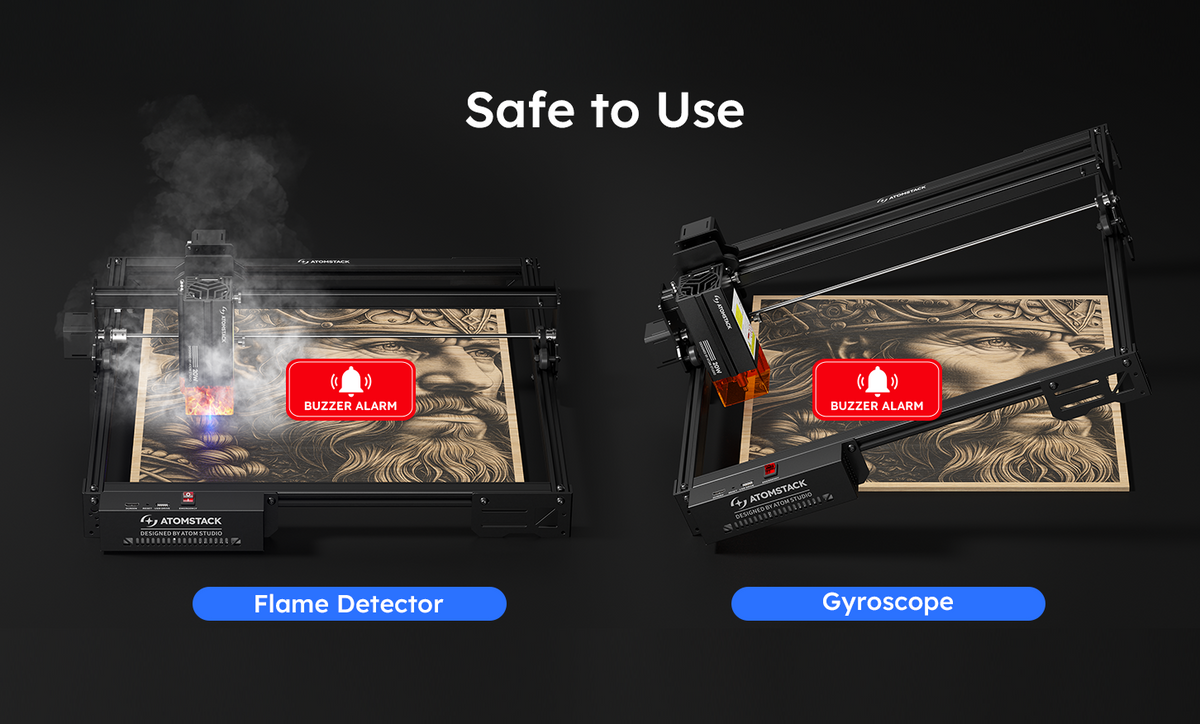

    Tip-over Alarm: Tipping angle>15°, buzzer prompts

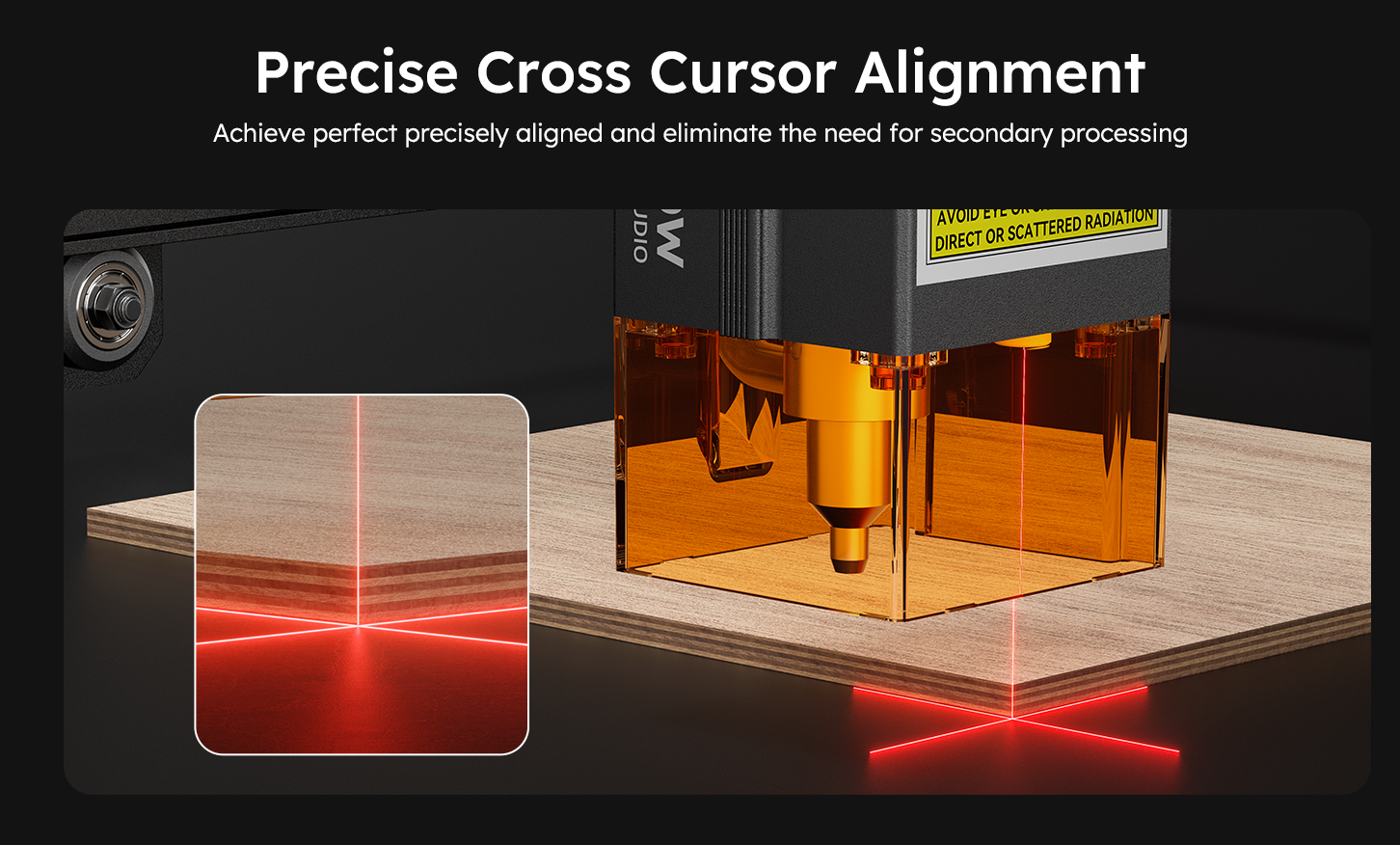

    Cross Positioning: Yes
    Flame detection: Yes, it requires support from the Z2 Z-axis slider

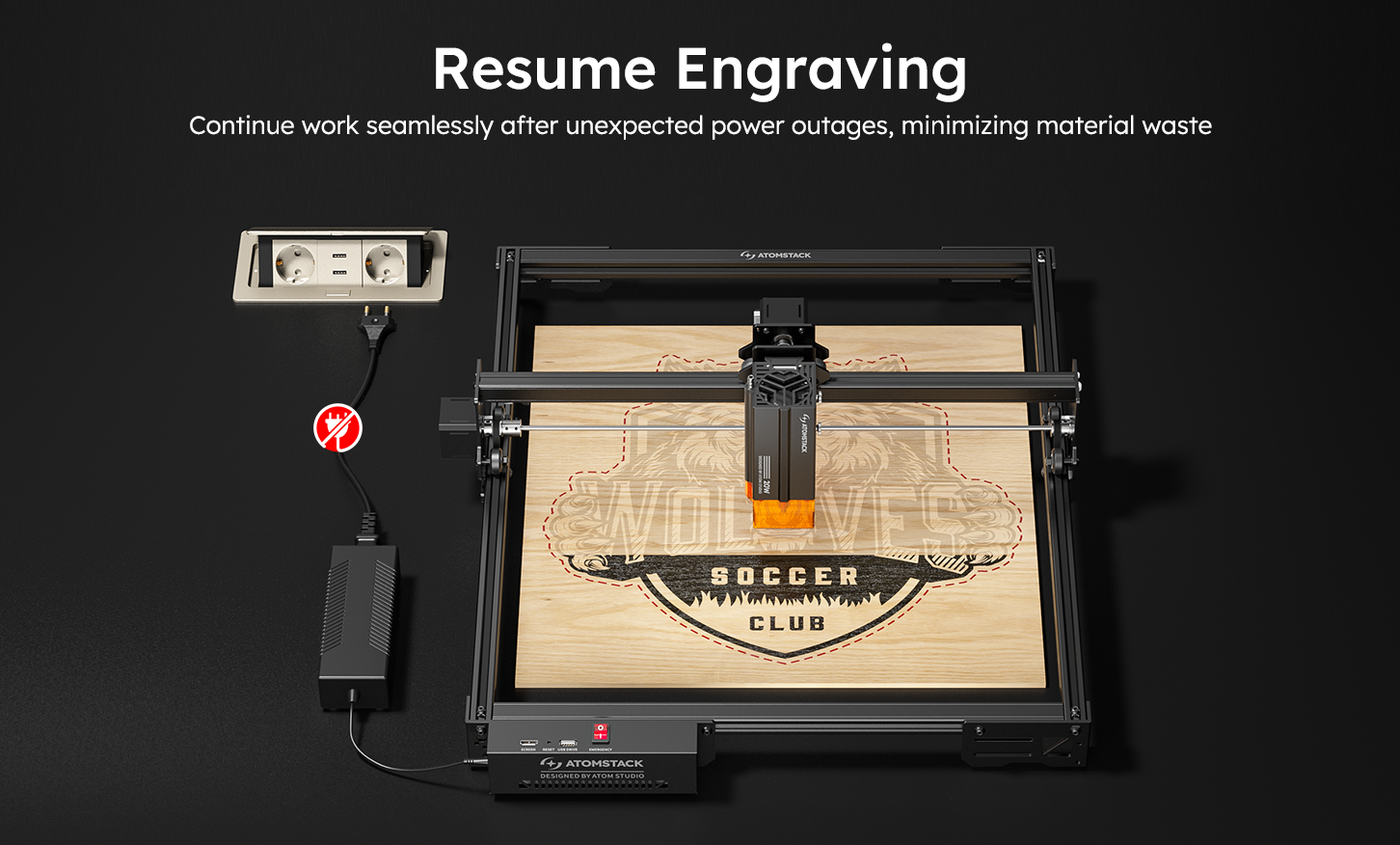

    Resume Engraving: Yes
    Quality Certification: IEC 60825, CE, FCC, RoHS, FDA, PSE, UKCA
